288 Cores Waterproof Fiber Optic Splice Box/ Distribution Box/Termination Box/FTTH BOX/FTTX BOX

Description:

FTTH Drop Cable Type Fiber Optic Splice Closure is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.FTTH Drop Cable Type Fiber Optic Splice Closure features with ruggedness, which is tested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design helps user get better experience and safer operating environment.

Specification:

Model NO.:SJ-FTTH-SK-17

Dimension mm:385X245X130

Capacity:288 Fibers

Cable ports:8 round ports

Applicable Cable Diameter:8~17 mm

Applicable Cable Diameter:2*3mm FTTH Drop Cable, 2*5mm Outdoor Figure8 FTTH Drop Cable

Material:Modified Polymer Plastic

Sealing Structure:Mechanical Sealing

Weight:4.8KGS

Installation:Wall mounting & Pole mounting

Protection grade:IP 68

Impact Test:IK10

Pull Force:100N

Environmental requirement

Working temperature: -40℃~+85℃

Relative humidity: ≤85% (+30℃)

Atmospheric pressure: 70KPa~106Kpa

Thunder-proof technical datasheet

The insulation resistance between the grounding device and the metal parts of the box is no less than 2MΩ/500V (DC); IR≥2MΩ/500V.

The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V

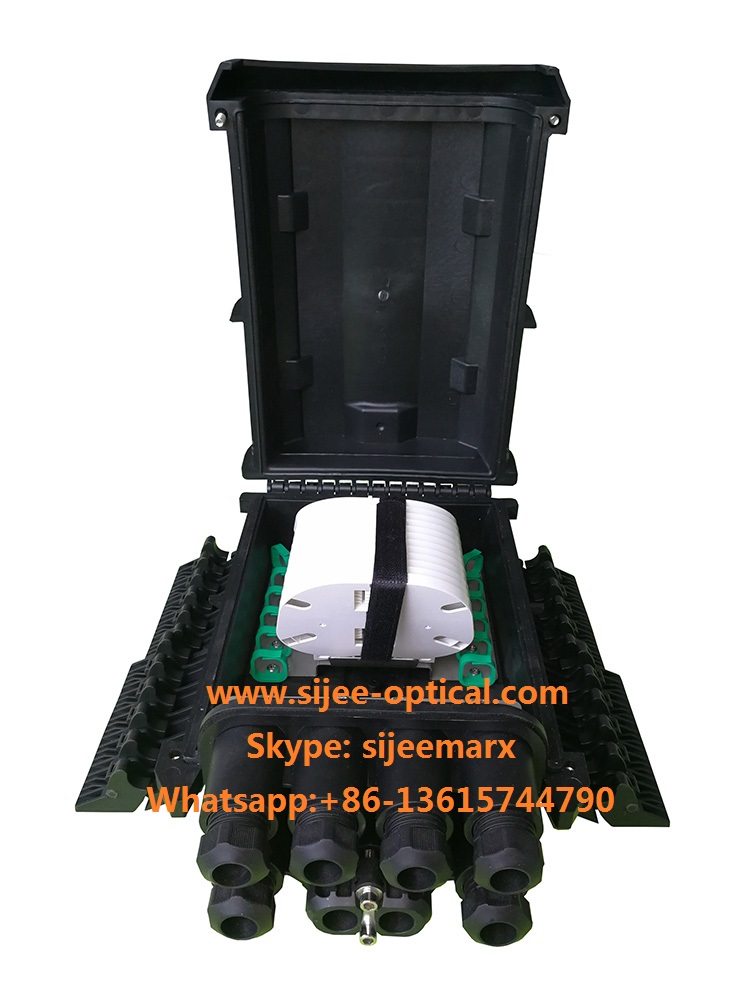

Waterproof Fiber Optic Splice Box

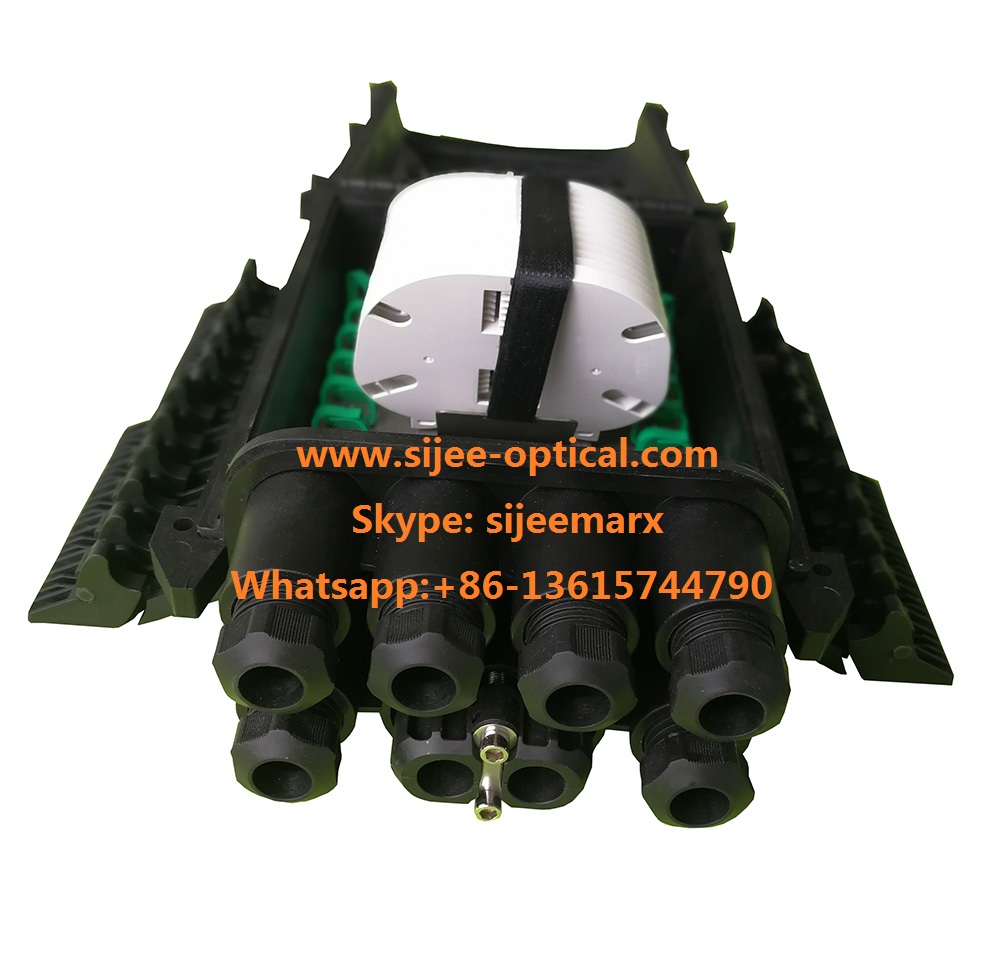

Fiber Optic Distribution box Enclosure

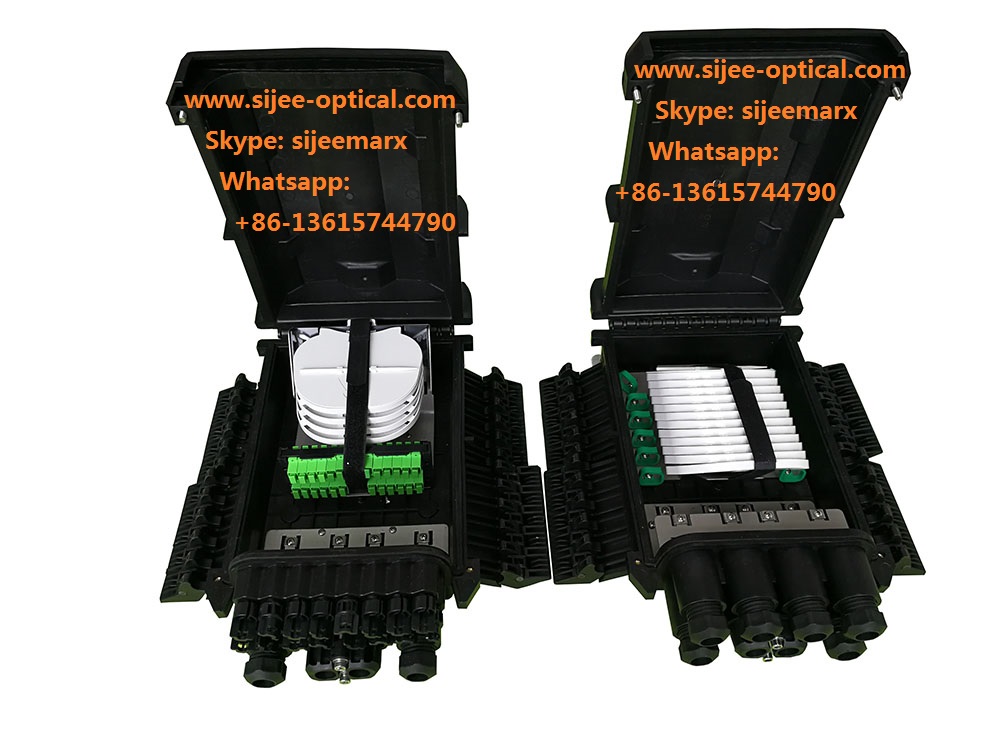

Fiber Optical Distribution Box

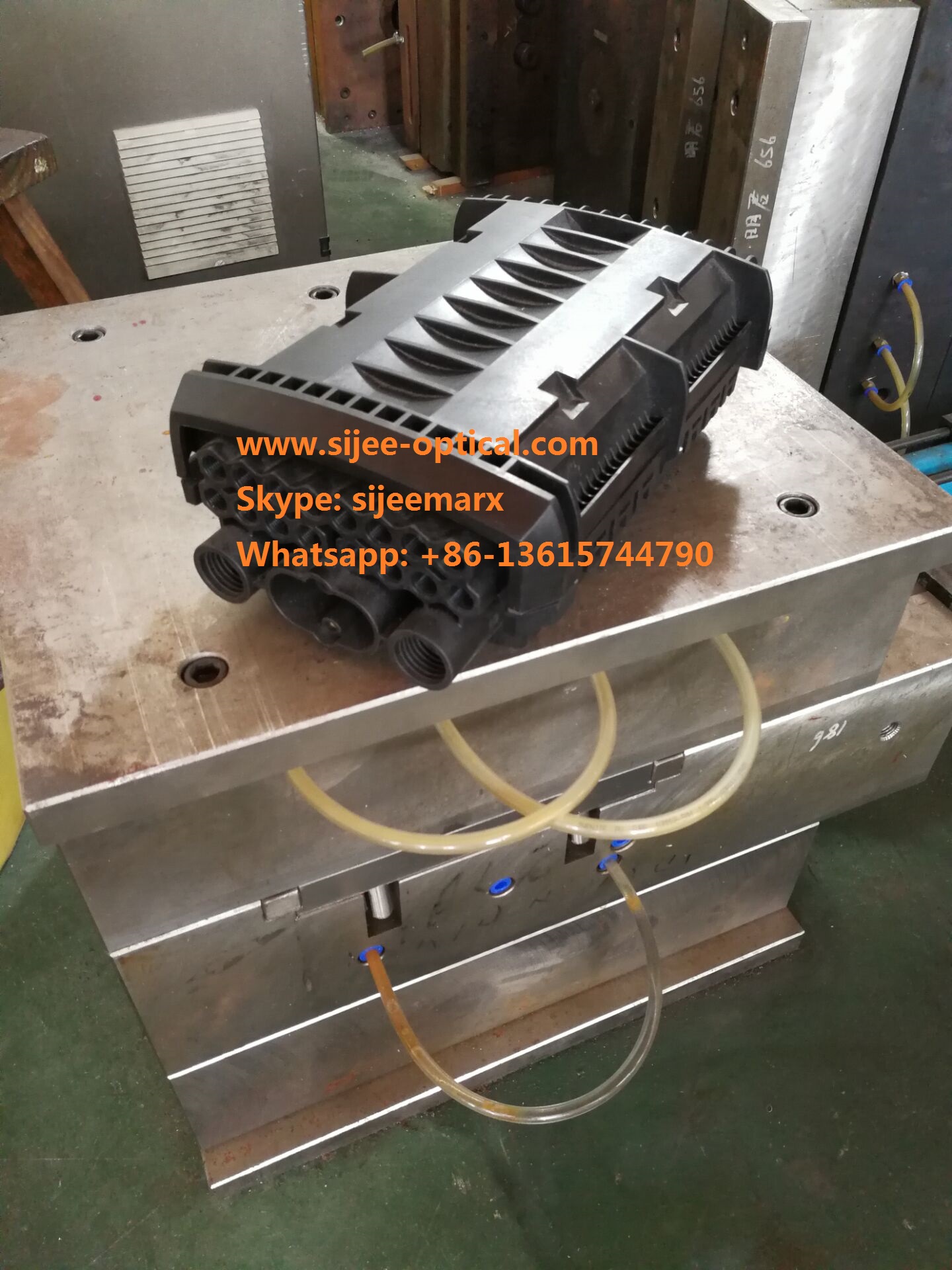

Mould of Fiber optic splice closure

Termination Box Outdoor Wall Mountable available FC/SC/ST/LC Adapter

Standard Wall Mount Enclosure is mainly used for connecting the indoor/outdoor optical cables, patch cords and pigtails. It can be wall mounted or pole mounted and provides various accessories to avoid any unexpected damage to the fiber.

This types of fiber termination box as distribution box, it is usually used in between wiring closets and equipment for fiber optic cable termination, use and management.

Note: This box does not come with any adapters and pigtails. If you need them, we can install them for you with few charges.

Features

Suitable for ribbon and bunchy fiber cables Fiber splice trays can be installed and changed easily Small dimension and exquisite and easy for operation Standard cell structure size, wall mounted patch panel Capacity: 12-144 ports Suitable for SC, FC, ST Simplex & LC Duplex

Specifications

Technology: Electrostatic spraying Material: SPCC or AL or customized Color: Milk White Compliant with ISO: 9001, RoHS, UL, Bellcore certification Atmosphere pressure: 70KPa~106KPaType: Single door open
